IOM Example - Reinforced Beam

This example describes how to define a reinforced beam in IOM (IDEA StatiCa Open Model).

Let's create a standard console application in MS Visual Studio. Select File > New > Project from the menu bar. In the dialog, select the Visual C# node followed by the Get Started node. Then select the Console App project template.

Add the IdeaRS.OpenModel NuGet package

OpenModel is published as the nuget package. To install this package, you can use either the Package Manager UI or the Package Manager Console.

For more information, see Install and use a package in Visual Studio

There is also documentation related to IdeaRS.OpenModel on Github.

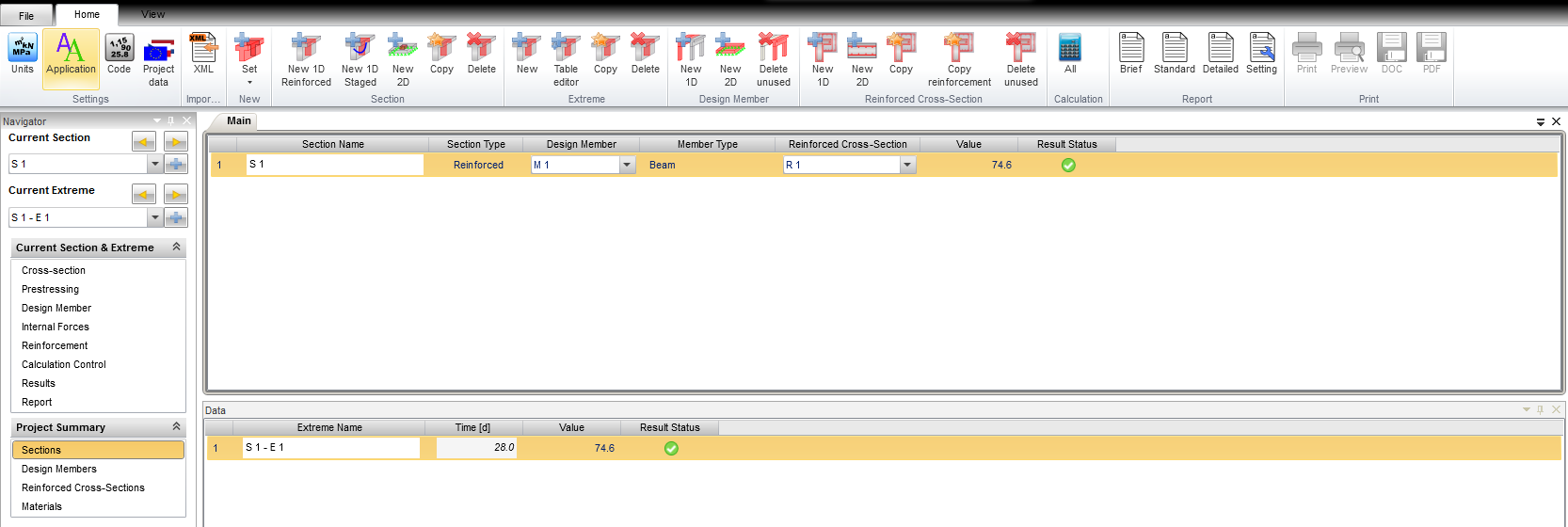

Create a new project

IOM data has to contain basic information of a new project, such as a project name, description, code type etc.

//Common project data
var projectData = new ProjectData();
projectData.Name = "Column project";
projectData.Date = new DateTime(2019, 6, 4);

//Additionl data for Ec
var projectDataEc = new ProjectDataEc();
projectDataEc.AnnexCode = NationalAnnexCode.NoAnnex;
projectDataEc.FatigueCheck = false;
projectDataEc.FatigueAnnexNN = false;
projectData.CodeDependentData = projectDataEc;

openModel.ProjectData = projectData;

//Concrete project data
var projectDataConcrete = new ProjectDataConcreteEc2();
projectDataConcrete.CodeEN1992_2 = false;
projectDataConcrete.CodeEN1992_3 = false;
openModel.ProjectDataConcrete = projectDataConcrete;

alt text

Materials

To create a new project, these types of materials have to be defined:

a new concrete material

//Concrete material
MatConcreteEc2 mat = new MatConcreteEc2();
mat.Name = "C30/37";
mat.UnitMass = 2500.0;
mat.E = 32836.6e6;
mat.G = 13667000000.0;
mat.Poisson = 0.2;
mat.SpecificHeat = 0.6;
mat.ThermalExpansion = 0.00001;
mat.ThermalConductivity = 45;
mat.Fck = Conversions.MPaToSystem(30.0);
mat.CalculateDependentValues = true;
openModel.AddObject(mat);

alt text

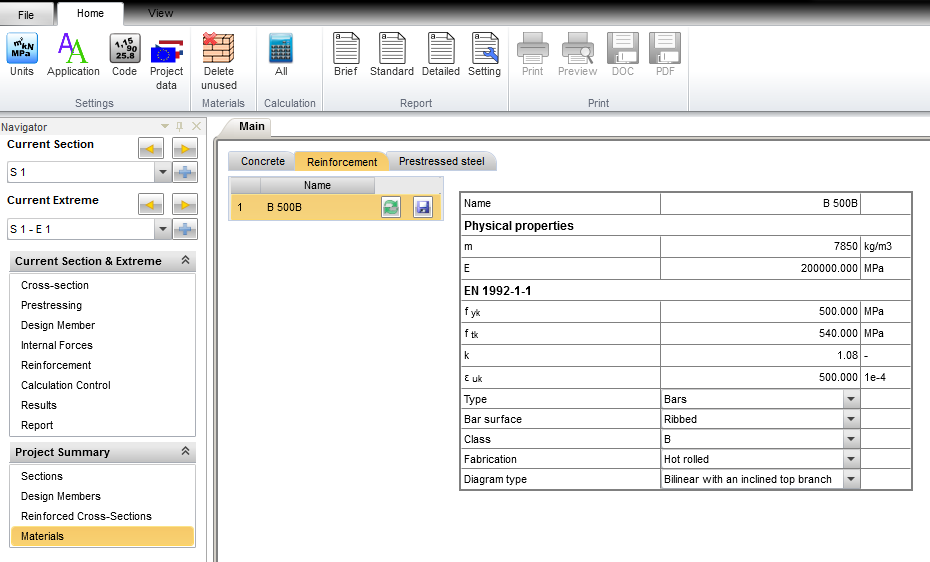

a new material of reinforcement

//Reinforcement material
MatReinforcementEc2 matR = new MatReinforcementEc2();
matR.Name = "B 500B";
matR.UnitMass = 7850.0;
matR.E = 200e9;
matR.Poisson = 0.2;
matR.G = 83.333e9;
matR.SpecificHeat = 0.6;
matR.ThermalExpansion = 0.00001;
matR.ThermalConductivity = 45;
matR.Fyk = 500e6;
matR.CoeffFtkByFyk = 1.08;
matR.Epsuk = 0.025;
matR.Type = ReinfType.Bars;
matR.BarSurface = ReinfBarSurface.Ribbed;
matR.Class = ReinfClass.B;
matR.Fabrication = ReinfFabrication.HotRolled;
matR.DiagramType = ReinfDiagramType.BilinerWithAnInclinedTopBranch;
openModel.AddObject(matR);

alt text

Cross-section

The next step is to define the shape and dimensions of cross-section and type of material.

alt text

Reinforced cross-sections

After defining the concrete cross-section, reinforcement is set into this one. The reinforced section is defined in this way and it is referenced to the concrete cross-section.

CrossSectionParameter css = new CrossSectionParameter();
css.Name = "CSS1";
css.Id = openModel.GetMaxId(css) + 1;

css.CrossSectionType = CrossSectionType.Tg;

css.Parameters.Add(new ParameterDouble() { Name = "Height", Value = 0.7 });
css.Parameters.Add(new ParameterDouble() { Name = "Width", Value = 0.8 });
css.Parameters.Add(new ParameterDouble() { Name = "TopFlangeWidth", Value = 0.16 });
css.Parameters.Add(new ParameterDouble() { Name = "WallWidth", Value = 0.25 });
css.Material = new ReferenceElement(mat);

openModel.AddObject(css);

alt text

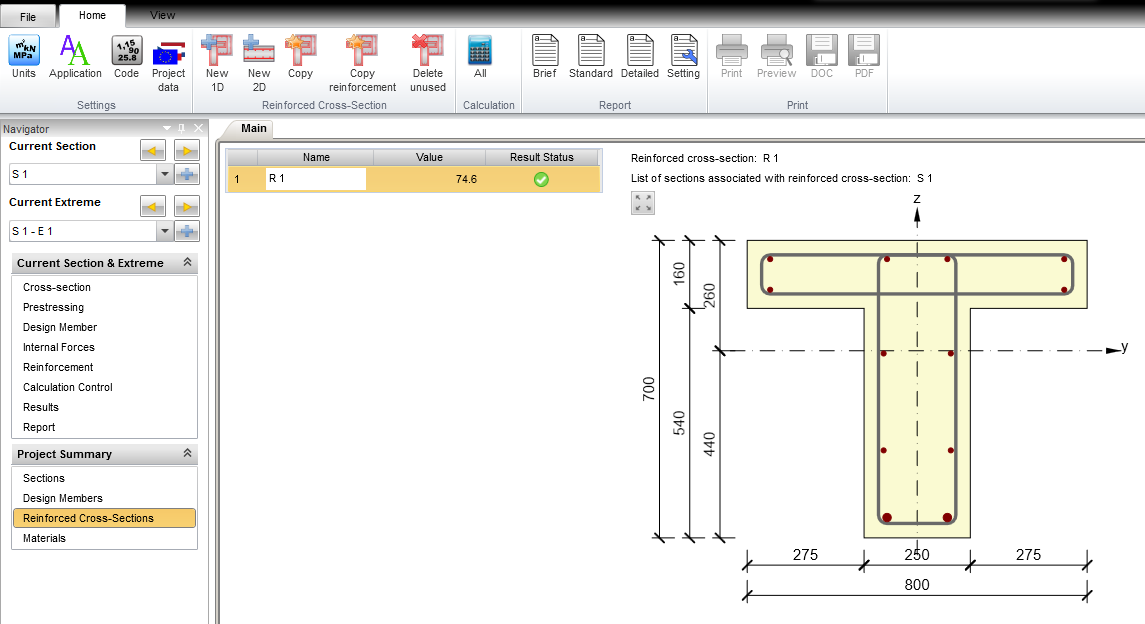

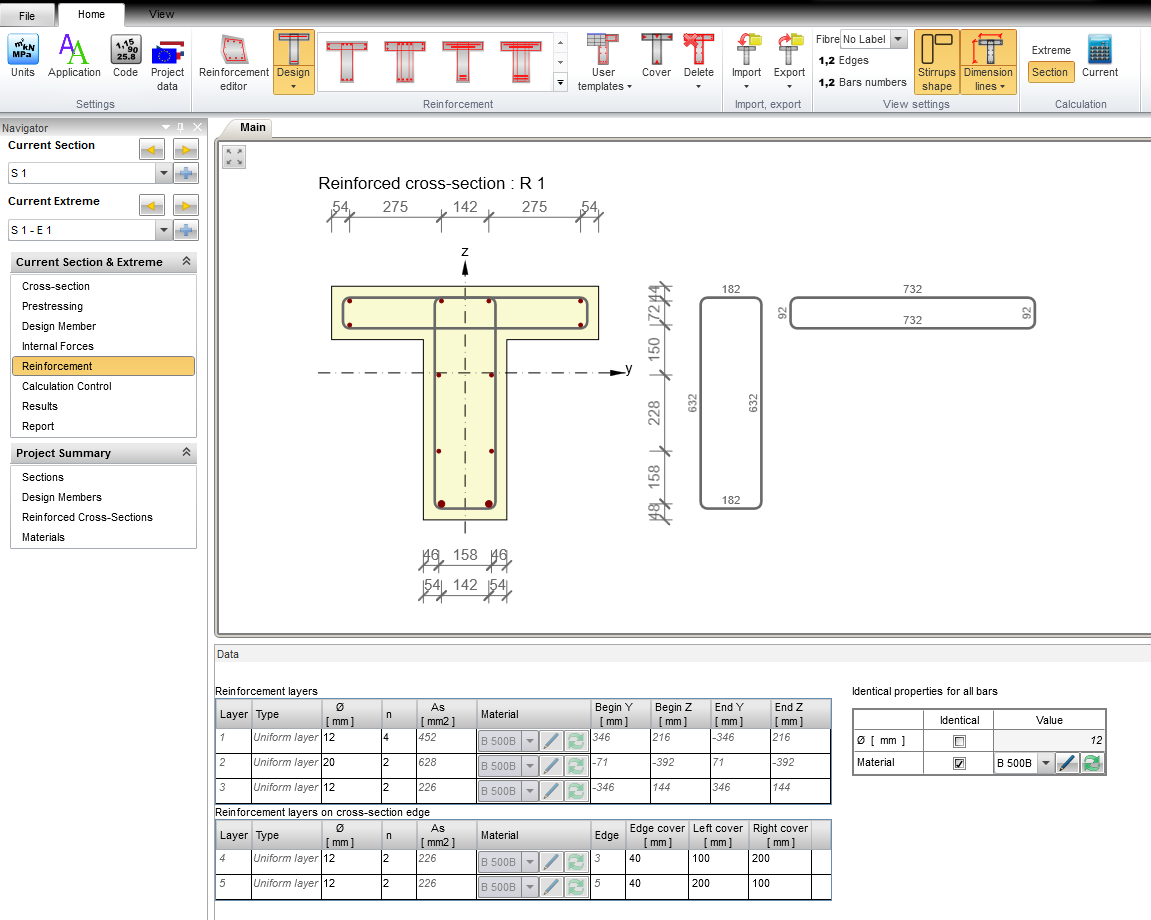

Reinforcement

Reinforcement is defined as stirrups and longitudinal bars.

//Reinforced section - concrete with reinforcement
ReinforcedCrossSection rcs = new ReinforcedCrossSection();
rcs.Name = "R 1";
rcs.CrossSection = new ReferenceElement(css);
openModel.AddObject(rcs);

alt text

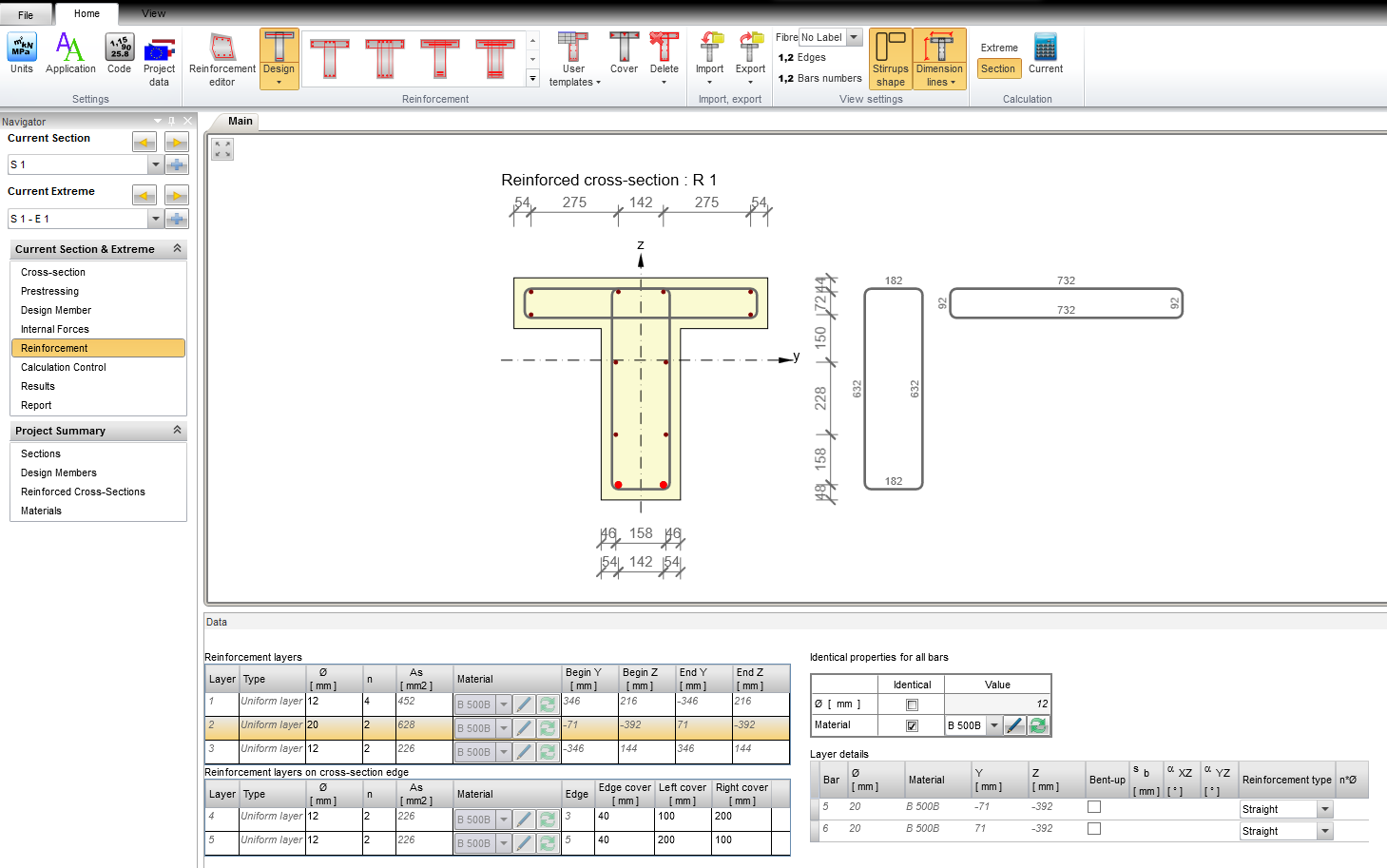

Longitudinal reinforcement

Define position, material, diameter and quantity of longitudinal reinforcement.

//Reinforced section - concrete with reinforcement
ReinforcedCrossSection rcs = new ReinforcedCrossSection();
rcs.Name = "R 1";
rcs.CrossSection = new ReferenceElement(css);
ReinforcedBar bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.346;
bar.Point.Y = 0.2157;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.071;
bar.Point.Y = 0.2157;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.071;
bar.Point.Y = 0.2157;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.346;
bar.Point.Y = 0.2157;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.020;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.071;
bar.Point.Y = -0.3923;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.020;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.071;
bar.Point.Y = -0.3923;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.346;
bar.Point.Y = 0.1437;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.346;
bar.Point.Y = 0.1437;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.079;
bar.Point.Y = -0.0063;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = -0.079;
bar.Point.Y = -0.2343;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.079;
bar.Point.Y = -0.2343;
rcs.Bars.Add(bar);

bar = new ReinforcedBar();
bar.Diameter = 0.012;
bar.Material = new ReferenceElement(matR);
bar.Point = new Point2D();
bar.Point.X = 0.079;
bar.Point.Y = -0.0063;
rcs.Bars.Add(bar);

alt text

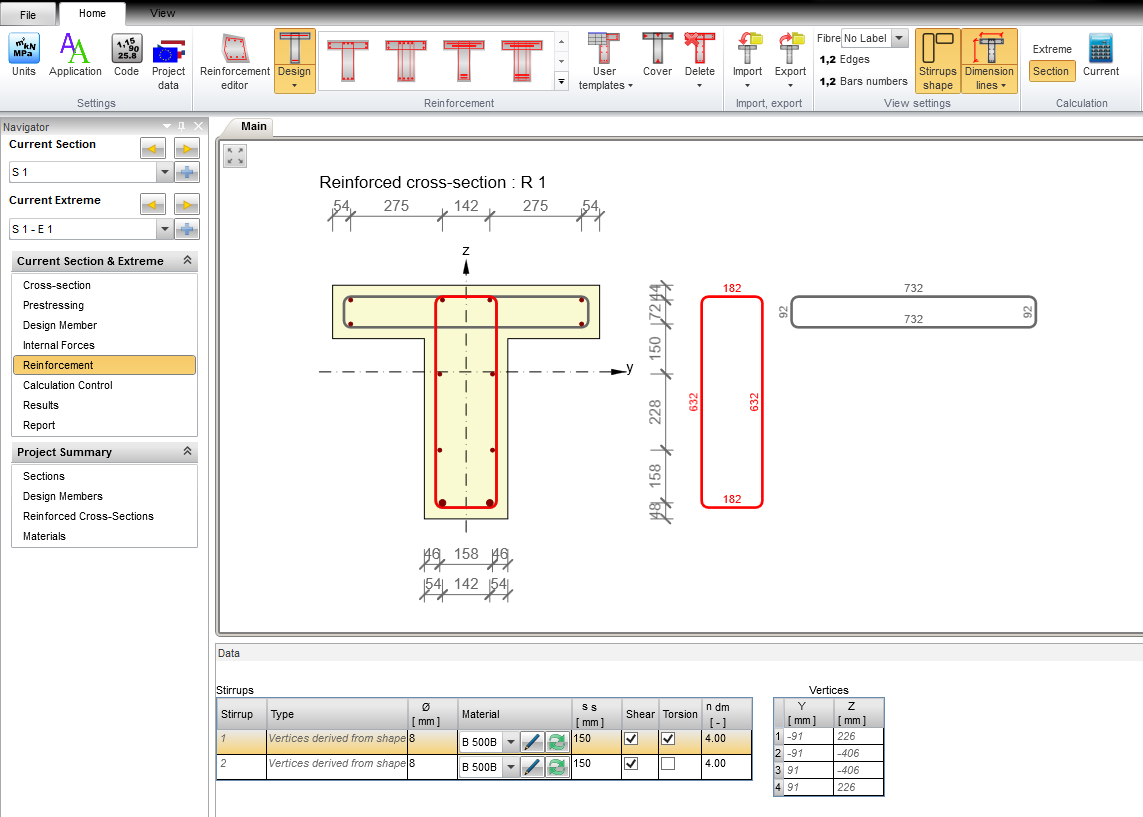

Stirrups

Setting shape and material of stirrup.

var stirrup = new Stirrup();
stirrup.Diameter = 0.008;
stirrup.DiameterOfMandrel = 4.0;
stirrup.Distance = 0.15;
stirrup.IsClosed = true;
stirrup.Material = new ReferenceElement(matR);
stirrup.ShearCheck = true;
stirrup.TorsionCheck = true;
var poly = new PolyLine2D();

poly.StartPoint = new Point2D();
poly.StartPoint.X = -0.091;
poly.StartPoint.Y = 0.2257;

var segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = -0.091;
segment.EndPoint.Y = -0.4063;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = 0.091;
segment.EndPoint.Y = -0.4063;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = 0.091;
segment.EndPoint.Y = 0.2257;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = -0.091;
segment.EndPoint.Y = 0.2257;
poly.Segments.Add(segment);

stirrup.Geometry = poly;
rcs.Stirrups.Add(stirrup);

stirrup = new Stirrup();
stirrup.Diameter = 0.008;
stirrup.DiameterOfMandrel = 4.0;
stirrup.Distance = 0.15;
stirrup.IsClosed = true;
stirrup.ShearCheck = true;
stirrup.TorsionCheck = false;
stirrup.Material = new ReferenceElement(matR);
poly = new PolyLine2D();

poly.StartPoint = new Point2D();
poly.StartPoint.X = -0.366;
poly.StartPoint.Y = 0.2257;

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = -0.366;
segment.EndPoint.Y = 0.1337;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = 0.366;
segment.EndPoint.Y = 0.1337;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = 0.366;
segment.EndPoint.Y = 0.2257;
poly.Segments.Add(segment);

segment = new LineSegment2D();
segment.EndPoint = new Point2D();
segment.EndPoint.X = -0.366;
segment.EndPoint.Y = 0.2257;
poly.Segments.Add(segment);

stirrup.Geometry = poly;
rcs.Stirrups.Add(stirrup);

alt text

Design member

Design member contains information about whole checked member. In the first step, it is required to define design member and then the member data are set into the design member.

//Check member == Design member in the RCS
var checkMember = new CheckMember1D();
openModel.AddObject(checkMember);

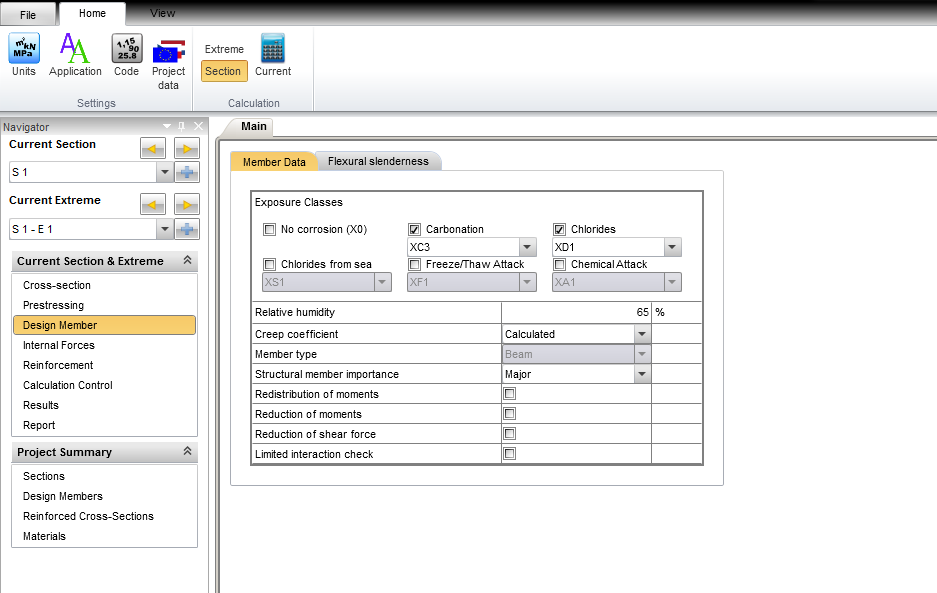

Member data

Setting of exposure classes, humidity and other important factors for the calculations (for example creep).

//Concrete meber data
var memberData = new ConcreteMemberDataEc2();
memberData.MemberType = ConcreteMemberType.Beam;
memberData.RelativeHumidity = 0.65;
memberData.CreepCoeffInfinityValue = InputValue.Calculated;
memberData.MemberImportance = MemberImportance.Major;

memberData.ColumnData = new ColumnDataEc2();

memberData.ExposureClassesData = new ExposureClassesDataEc2();
memberData.ExposureClassesData.NoCorrosionCheck = false;
memberData.ExposureClassesData.CarbonationCheck = true;
memberData.ExposureClassesData.Carbonation = ExposureClassEc2.XC3;
memberData.ExposureClassesData.ChloridesCheck = true;
memberData.ExposureClassesData.Chlorides = ExposureClassEc2.XD1;
memberData.ExposureClassesData.ChloridesFromSeaCheck = false;
memberData.ExposureClassesData.FreezeAttackCheck = false;
memberData.ExposureClassesData.ChemicalAttackCheck = false;

memberData.Element = new ReferenceElement(checkMember);
openModel.AddObject(memberData);

alt text

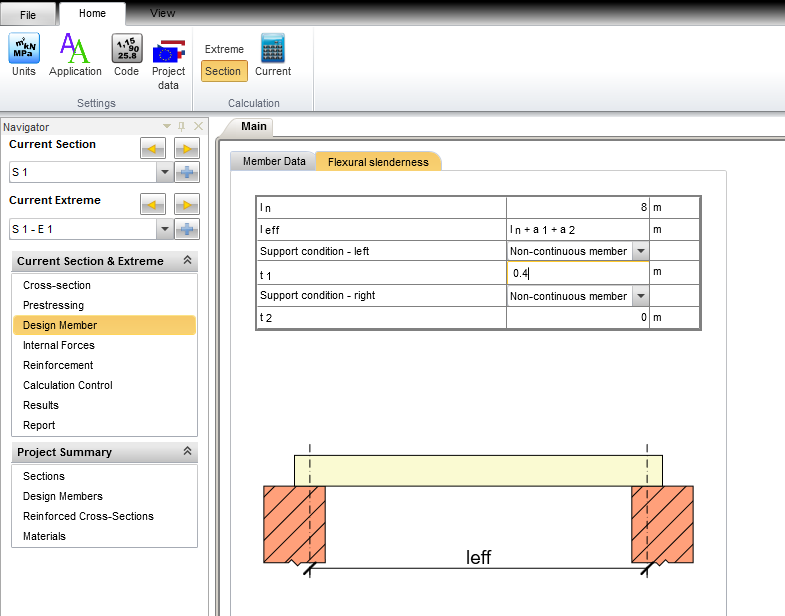

Flectural slendeness

In this dialog, it is required to set clear distance between faces of the supports and support conditions to check deflection of the beam.

memberData.BeamData = new BeamDataEc2();
memberData.BeamData.Ln = 1.0;
memberData.BeamData.TypeOfSupportLeft = TypeOfSupportConditions.NonContinuous;
memberData.BeamData.TypeOfSupportRight = TypeOfSupportConditions.NonContinuous;
memberData.BeamData.WidthOfSupportLeft = 0.4;
memberData.BeamData.WidthOfSupportRight = 0.4;

alt text

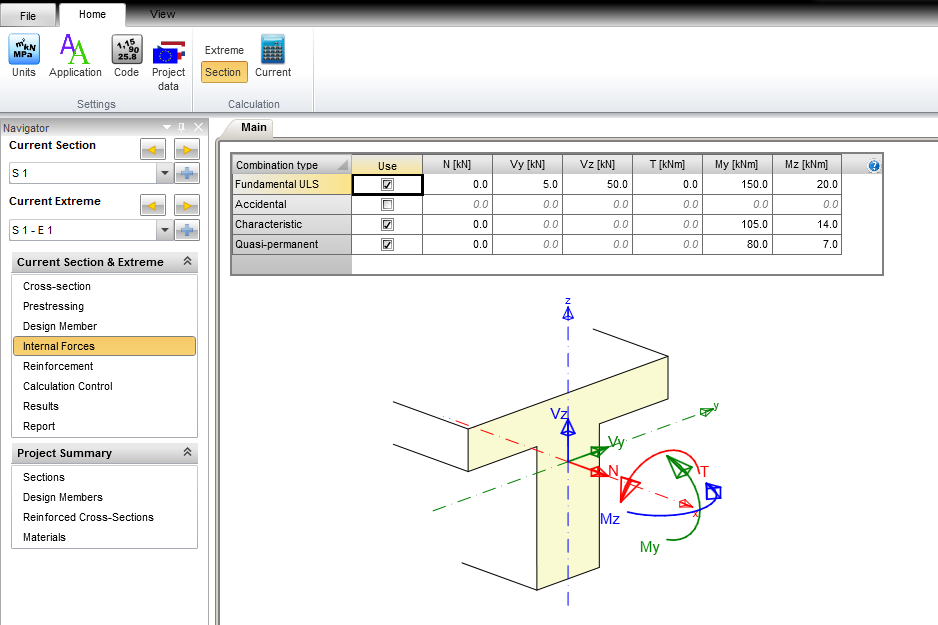

Sections, Extremes, Internal forces

The reinforced cross-section and the check member are defined for the checked section. Extremes of internal forces (for ULS and SLS calculation) are set in the checked section data there. For assessment of limit states, actual internal forces into the analyzed cross-section need to be insert.

//Standard section
var singleCheckSection = new StandardCheckSection();
singleCheckSection.Description = "S 1";
singleCheckSection.ReinfSection = new ReferenceElement(rcs);
singleCheckSection.CheckMember = new ReferenceElement(checkMember);

//add extreme to section
var sectionExtreme = new StandardCheckSectionExtreme();
//sectionExtreme.Name = "S1 - E1";
sectionExtreme.Fundamental = new LoadingULS();
sectionExtreme.Fundamental.InternalForces = new IdeaRS.OpenModel.Result.ResultOfInternalForces() { N = 0.0, My = 150.0e3, Mz = 20.0e3, Qy = 5.0e3, Qz = 50.0e3 };

sectionExtreme.Characteristic = new LoadingSLS();
sectionExtreme.Characteristic.InternalForces = new IdeaRS.OpenModel.Result.ResultOfInternalForces() { N = 0.0, My = 105.0e3, Mz = 14.0e3 };

sectionExtreme.QuasiPermanent = new LoadingSLS();
sectionExtreme.QuasiPermanent.InternalForces = new IdeaRS.OpenModel.Result.ResultOfInternalForces() { N = 0.0, My = 80.0e3, Mz = 7.0e3 };
singleCheckSection.Extremes.Add(sectionExtreme);

openModel.AddObject(singleCheckSection);

alt text

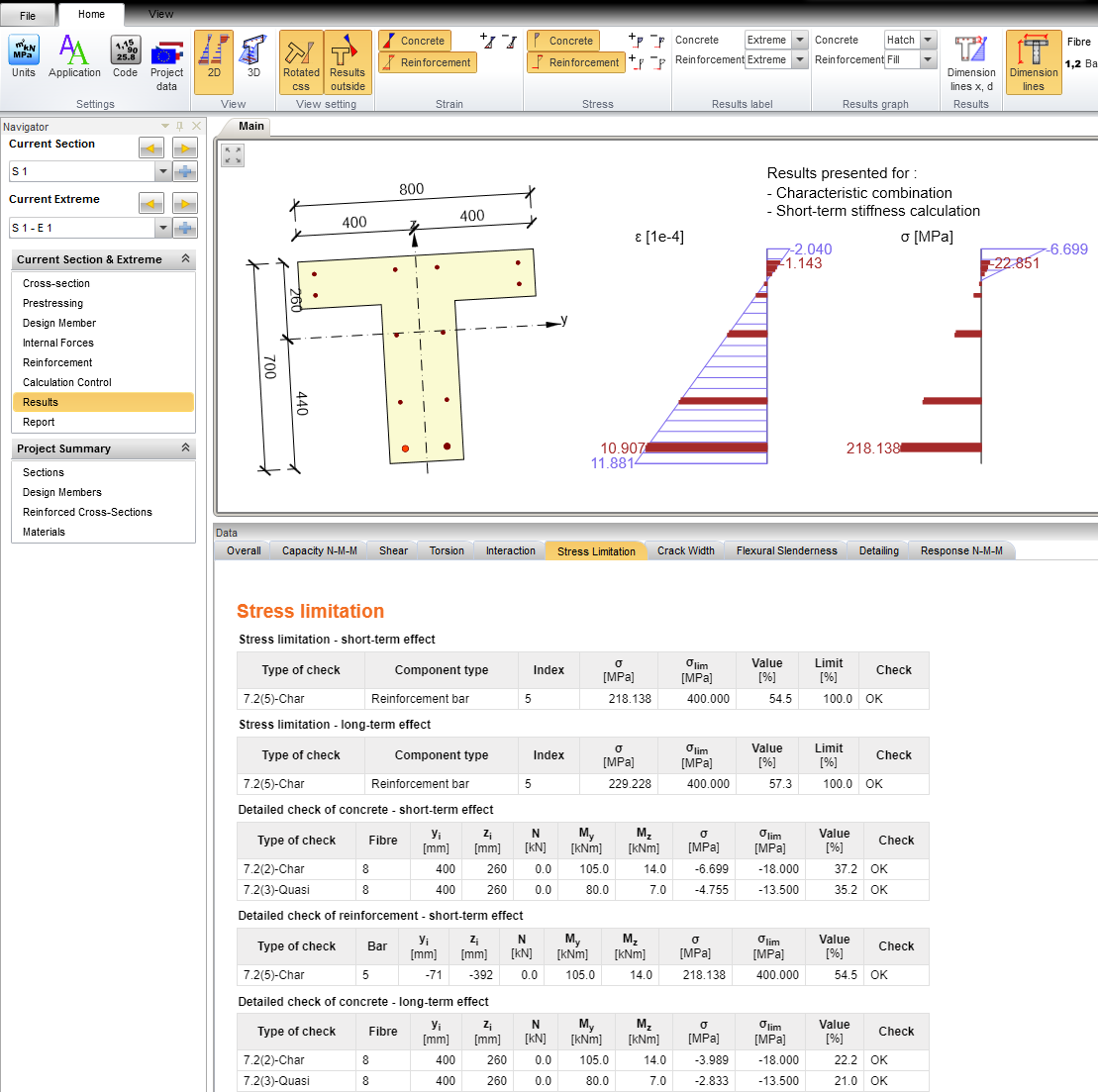

Calculation control

This setting define, which type of assessment will be used and corresponding results will be displayed.

memberData.CalculationSetup = new CalculationSetup();
memberData.CalculationSetup.UlsDiagram = true;
memberData.CalculationSetup.UlsShear = true;
memberData.CalculationSetup.UlsTorsion = true;
memberData.CalculationSetup.UlsInteraction = true;
memberData.CalculationSetup.SlsStressLimitation = true;
memberData.CalculationSetup.SlsCrack = true;
memberData.CalculationSetup.Detailing = true;
memberData.CalculationSetup.UlsResponse = true;
memberData.CalculationSetup.SlsStiffnesses = false;
memberData.CalculationSetup.MNKappaDiagram = false;

alt text

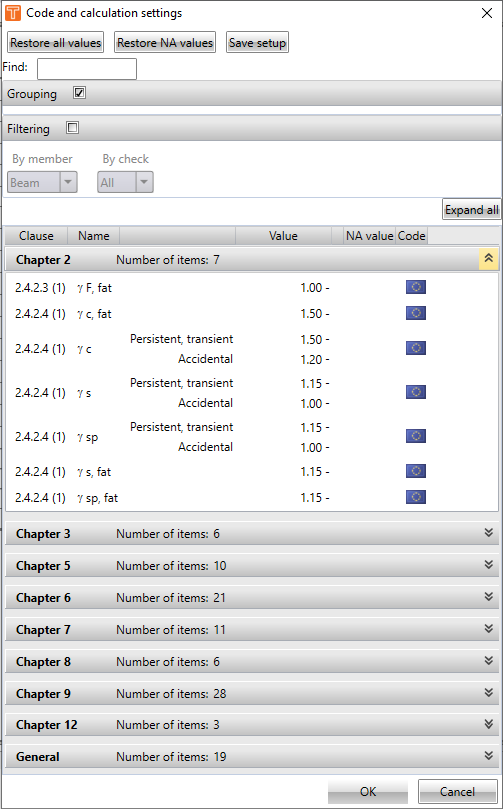

Concrete setup

Creating the code setup used for assessment of cross-section including national annex settings.

//Concrete setup
var setup = new ConcreteSetupEc2();
setup.Annex = NationalAnnexCode.NoAnnex;
openModel.ConcreteSetup = setup;

alt text

Results

In the followed example there is way how to run the check and the get results. Results are stored in the object with considered values for each assessment.

//Creating instance of Rcs controller
var rcsController = new IdeaStatiCa.RcsController.IdeaRcsController();
System.Diagnostics.Debug.Assert(rcsController != null);

//Open rcs project from IOM
IdeaRS.OpenModel.Message.OpenMessages messages;
var ok = rcsController.OpenIdeaProjectFromIdeaOpenModel(openModel, "Beam", out messages);
System.Diagnostics.Debug.Assert(ok);

rcsController.SaveAsIdeaProjectFile(fileName);

//Calculate project
ok = rcsController.Calculate(new List<int>() { singleCheckSection.Id });
System.Diagnostics.Debug.Assert(ok);

//gets the results
var result = rcsController.GetResultOnSection(null);
System.Diagnostics.Debug.Assert(result != null);

var sectionResult = result.FirstOrDefault(it => it.SectionId == singleCheckSection.Id);
System.Diagnostics.Debug.Assert(result != null);
foreach (var extremeResult in sectionResult.ExtremeResults)
{
    var overalResult = extremeResult.Overall;
    foreach (var check in overalResult.Checks)
    {
        System.Diagnostics.Debug.WriteLine("{0} - {1} - {2}", check.ResultType, check.Result, check.CheckValue);
    }

    foreach (var checkResult in extremeResult.CheckResults)
    {
        var checkType = checkResult.ResultType;
        foreach (var checkResult1 in checkResult.CheckResults)
        {
            var res = checkResult1.Result;

            switch (checkResult.ResultType)
            {
                case IdeaRS.OpenModel.Concrete.CheckResult.CheckResultType.Capacity:
                    var resultCapacity = checkResult1 as IdeaRS.OpenModel.Concrete.CheckResult.ConcreteULSCheckResultDiagramCapacityEc2;
                    var fu1 = resultCapacity.Fu1;
                    var fu2 = resultCapacity.Fu2;
                    break;

                case IdeaRS.OpenModel.Concrete.CheckResult.CheckResultType.Shear:
                    var resultShear = checkResult1 as IdeaRS.OpenModel.Concrete.CheckResult.ConcreteULSCheckResultShearEc2;
                    var v_ed = resultShear.Ved;
                    var v_rdc = resultShear.Vrdc;
                    //....
                    break;

                case IdeaRS.OpenModel.Concrete.CheckResult.CheckResultType.CrackWidth:
                    var resultCrackWidth = checkResult1 as IdeaRS.OpenModel.Concrete.CheckResult.ConcreteSLSCheckResultCrackWidthEc2;
                    var w = resultCrackWidth.W;
                    var wlim = resultCrackWidth.Wlim;
                    //....
                    break;
            }

            if (checkResult1.NonConformities.Count > 0)
            {
                var issues = rcsController.GetNonConformityIssues(checkResult1.NonConformities.Select(it => it.Guid).ToList());
                foreach (var issue in issues)
                {
                    System.Diagnostics.Debug.WriteLine(issue.Description);
                }
            }
        }
    }
}

rcsController.Dispose();

alt text

Table of Contents

IOM Example - Reinforced Beam

Add the IdeaRS.OpenModel NuGet package

Create a new project

Materials

Cross-section

Reinforced cross-sections

Reinforcement

Longitudinal reinforcement

Stirrups

Design member

Member data

Flectural slendeness

Sections, Extremes, Internal forces

Calculation control

Concrete setup

Results
